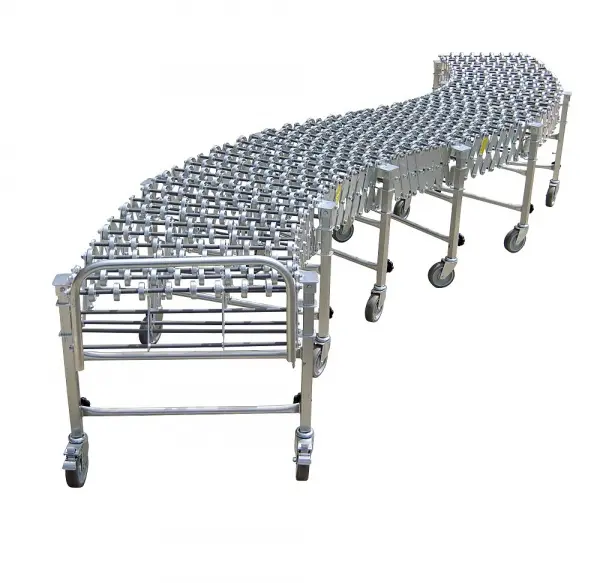

Nestaflex 376 AL/FL Gravity Skate Wheel Conveyor

NestaFlex 376 Expandable Flexible Conveyor Features


The NestaFlex® Gravity 376 AL/FL is a durable, gravity conveyor that features double welded cross braces and heavy-duty square tubing legs available in adjustable height legs (AL) and fixed height legs (FL). The four-point leg connection gives additional strength to the conveyor to make it last even longer. The NestaFlex 376 is ultimately designed to provide the support necessary to handle heavy packages in high volume environments. Additional features include:


• 376 lbs./ft. load-bearing
• Fixed or adjustable leg options
• 5.25” axle centers
• Steel skate wheels w/steel ball bearings
• Welded double horizontal leg braces
• Self-tracking design
• Heavy-duty steel square tubing zinc plated legs



NestaFlex 376 Extendable Flexible Conveyor Specifications & Applications


The NestaFlex 376 is flexible and lightweight and is designed for easy movement to numerous delivery locations within your facility. This conveyor is also collapsible for easy storage when not in use and is designed to provide the support necessary to handle heavy packages in medium to high volume shipping environments. These include receiving departments in distribution centers, retail stores, and manufacturing and assembly operations. Some of the additional specifications of the NestaFlex 376 include:


• Width: 18”, 24”, or 30”. Determined by package size, available conveying area and application-specific needs. Available in various heights and lengths.
• Length extended: 8’ - 60’. The determined total length needed, including curvatures and obstructions
• Axle center: 5.25”, 4” or 3”. Package size determines necessary axle center length on the fully extended conveyor
• Skate wheel type: steel, black or red; Determined by package weight, durability, operational flow control, and application-specific needs


Need a specific length or operation function? Contact us and we will help you design a conveyor with the features needed to meet your requirements.


Contact Stewart Handling for the Nestaflex 376 AL/FL Gravity Skate Wheel Conveyor Today


Contact us for more information regarding our highly expedient and effective Nestaflex 376 Expandable Flexible Conveyor system, or request a quote for further pricing details today. Call Stewart Handling today for custom sizing or applications: 800-447-5300. We also offer services for installation, maintenance, and repairs for these products.
