Cleveland Tramrails and Tarca Cranes
Click image to enlarge
Cleveland Tramrail's unique Tarca® Trac is far superior to traditional I-Beam tracks. Made of high carbon steel, Tarca Trac will outlast and perform for years to come. Capacities up to 40 tons. Rails permit the use of underhung carriers operating on a single straight, curved, or inclined track. System expansions are easy and cost effective
Stewart Handling can help you determine which of the following Cleveland Tramrail Tarca Systems will work best in your environment:
Cleveland Tramrail Underhung System
Cleveland Tramrail Monorail
Free Standing Tarca System
Ceiling Mounted Tarca System
Stewart Handling can help you determine which of the following Cleveland Tramrail Tarca Systems will work best in your environment:

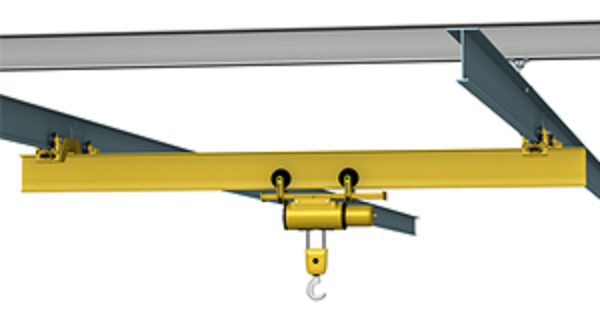

Cleveland Tramrail Underhung System
- Capacities from 5 to 40 tons
- Rectangular coverage with spans to 38’
- Support centers up to 50’
- Easily changeable and expandable

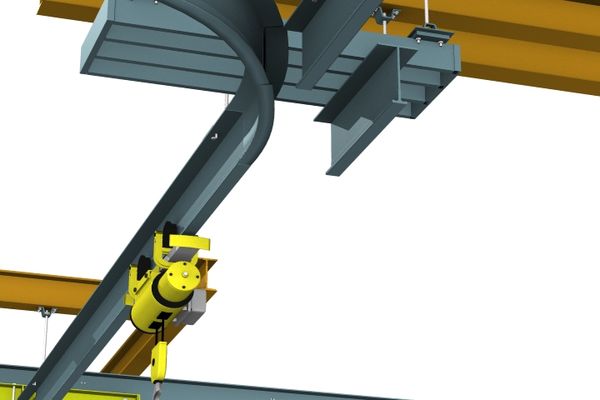

Cleveland Tramrail Monorail
- Capacities from 5 to 40 tons
- Straight and/or curved path routes
- Use to move material through an entire production area
- Easily changeable and expandable

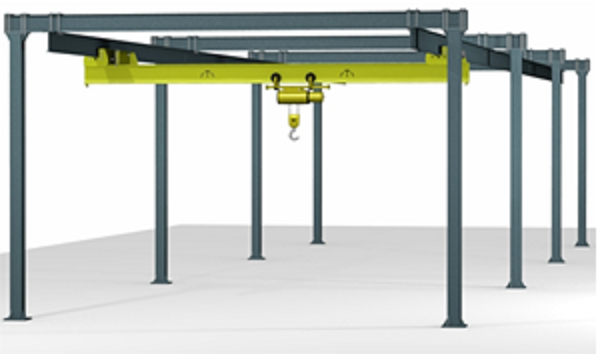

Free Standing Tarca System
- Capacities to 5 tons
- Rectangular coverage spans to 60’
- Completely free standing or braced system
- Runway supports centers available in 20’ to 40’ increments

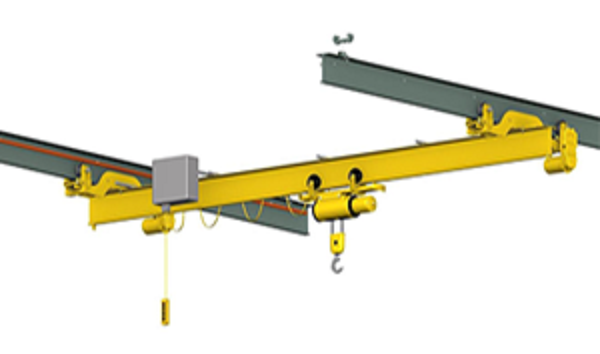

Ceiling Mounted Tarca System
- Capacities up to 5 tons
- Rectangular coverage with spans to 58’
- Custom Support centers up to 50’ on runways
