Gorbel Jib Cranes
Click image to enlarge
Enclosed track jibs are great for tooling, hoists, welders, air balancers and lifting applications where a main crane may not be efficient. Cost efficient and easy installation.
Stewart Handling can help you choose from the following Jib Cranes to determine which crane will best suit your needs:
Wall Mounted Work Station Jib Cranes are available in steel or stainless steel. Uses tapered roller bearings for ease of rotation
Free Standing Tool Solutions Jib Cranes have a small footprint, allowing for installation in small areas. Designed as a lightweight option for light duty lifting and applications with suspended tools. No foundation required
Wall Mounted Tool Solutions Jib Cranes have a slim profile and are suited for tight work spaces. Small bracket centers make it ideal for low headroom applications. The features are the same as the Free Standing Tool Solution.
Aluminum Tie Rod Jib Cranes
Aluminum Tie Rod Jib Cranes’s high strength aluminum track reduces the rotational dead wright of the boom and allows 40% more rotation than a tradition I-beam jib.
Stewart Handling can help you choose from the following Jib Cranes to determine which crane will best suit your needs:

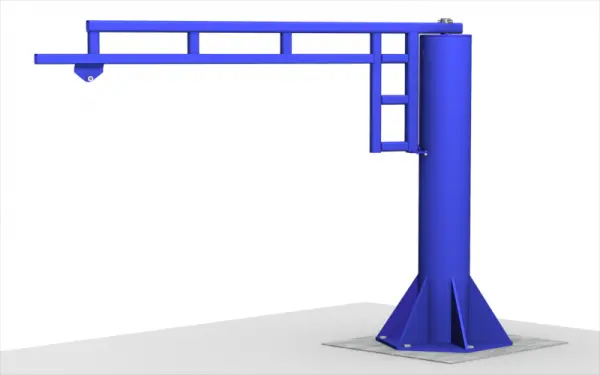

Free Standing Work Station Jib Cranes
Free Standing Work Station Jib Cranes can be bolted directly to your existing floor without adding special foundations- Capacity up to 1,000 lbs.
- Circular coverage spans to 16 ft.
- 360 degree rotation
- Most can be bolted directly to existing floor

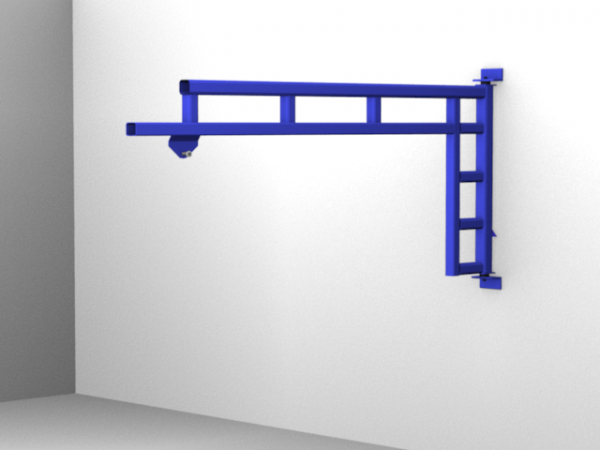

Wall Mounted Work Station Jib Cranes
Wall Mounted Work Station Jib Cranes are available in steel or stainless steel. Uses tapered roller bearings for ease of rotation - Capacity up to 1,000 lbs.(steel) 500 lbs. (stainless steel)
- Circular coverage spans to 16 ft.
- 200 degree rotation
- Mounts to a wall or column

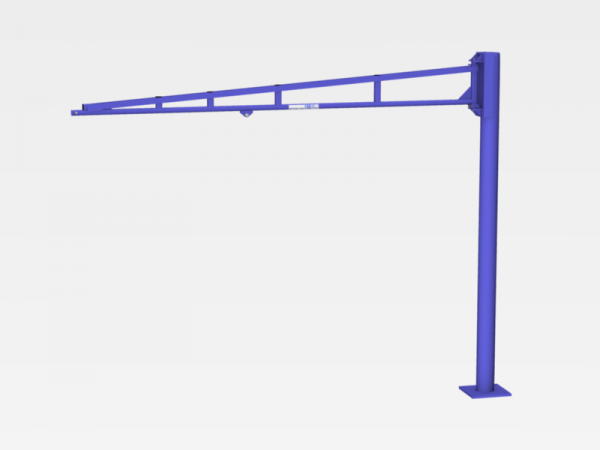

Free Standing Tool Solutions Jib Cranes
Free Standing Tool Solutions Jib Cranes have a small footprint, allowing for installation in small areas. Designed as a lightweight option for light duty lifting and applications with suspended tools. No foundation required - Capacity of 50 lbs. and 150 lbs.
- Standard circular coverage for 50 lbs. spans from 4 ft. to 10 ft.
- Standard circular coverage for 150 lbs. spans for 4 ft. to 12 ft.
- 180 degree rotation for 50 lb. and 200 degree rotation for 150 lb.
- Standard height from 8 ft. to 10 ft.

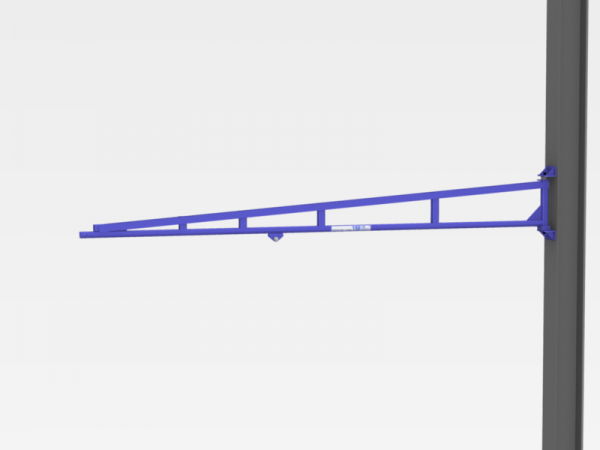

Wall Mounted Tool Solutions Jib Cranes
Wall Mounted Tool Solutions Jib Cranes have a slim profile and are suited for tight work spaces. Small bracket centers make it ideal for low headroom applications. The features are the same as the Free Standing Tool Solution. - Capacity of 50 lbs. and 150 lbs.
- Standard circular coverage for 50 lbs. spans from 4 ft. to 10 ft.
- Standard circular coverage for 150 lbs. spans for 4 ft. to 12 ft.
- 180 degree rotation for 50 lb. and 200 degree rotation for 150 lb.
- Standard height from 8 ft. to 10 ft.

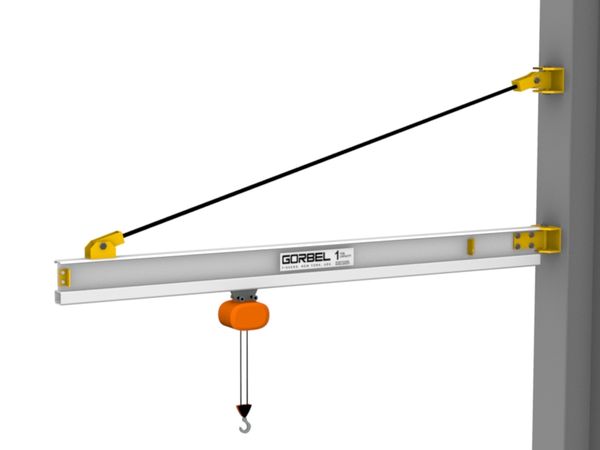

Aluminum Tie Rod Jib Cranes
Aluminum Tie Rod Jib Cranes’s high strength aluminum track reduces the rotational dead wright of the boom and allows 40% more rotation than a tradition I-beam jib.- Capacity up to 2,000 lbs.
- Circular coverage spans to 20 ft.
- 200 degree rotation
- Can be mounted to a wall or column
- Tie rod minimizes deflection for more precise positioning.
