I-Beam Jib Cranes
Click image to enlarge
When you need heavier capacities, I-Beam Jibs have the capability to get your product moved safely. Great for manufacturing and industrial applications. Workers are easily and safely able to position loads with easy rotation and optimal standard deflection. All I-Beam Jibs can be motorized.
Let Stewart Handling help you chose which of the following I-Beam Jib Crane that best meets your needs.
Free Standing Jib Cranes are extremely versatile. They can be placed in open areas in order to serve several work stations, in machining and assembly operations where they can be overlapped with other jibs, in outdoor applications like loading docks. Image name: FS350S.jpg
Wall Bracket Jib Cranes are the most economical means of providing hoist coverage for use along walls or columns of plants, as a supplement to an overhead crane or monorail system or for individual use in bays.
Wall Cantilever Jib Cranes provide features similar to the Wall Bracket Jib Crane but they have the advantage of providing maximum lift for the hoist, since they can be installed very close to the underside of the lowest ceiling obstruction.
The Mast Type Jib Crane is floor supported and usually does not require any special foundation. This crane is capable of 360 degree rotation via a top and bottom bearing assembly and with it’s
efficient design, makes this jib crane one of the most cost effective of the 360 degree rotation jib styles.
Let Stewart Handling help you chose which of the following I-Beam Jib Crane that best meets your needs.

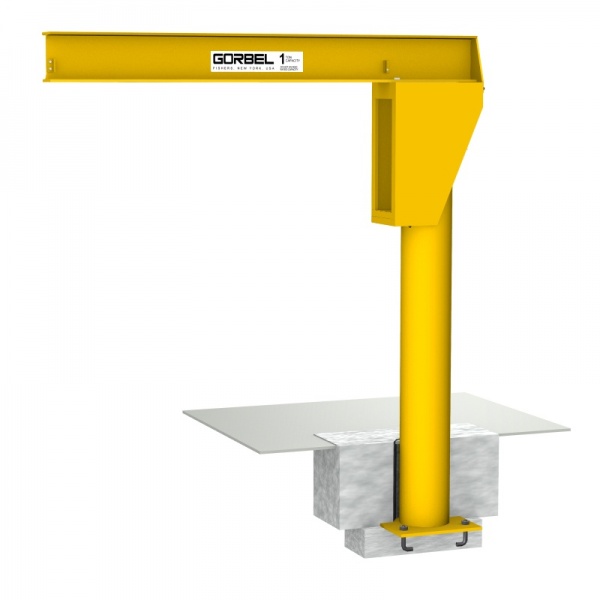

Free Standing Jib Cranes
Free Standing Jib Cranes are extremely versatile. They can be placed in open areas in order to serve several work stations, in machining and assembly operations where they can be overlapped with other jibs, in outdoor applications like loading docks. Image name: FS350S.jpg- Capacity up to 10,000 lbs.
- Standard circular coverage spans to 20’
- 360 degree rotation
- 3 mounting styles: base plate mounted, sleeve mounted, insert sleeve mounted.

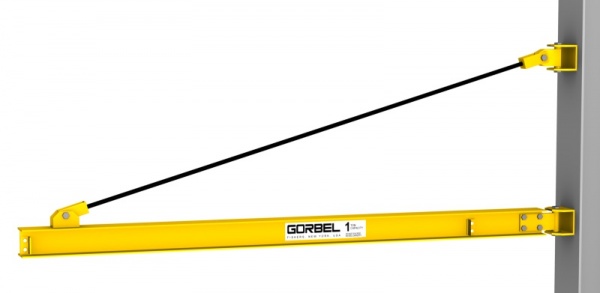

Wall Bracket Jib Cranes
Wall Bracket Jib Cranes are the most economical means of providing hoist coverage for use along walls or columns of plants, as a supplement to an overhead crane or monorail system or for individual use in bays.- Capacity up to 10,000 lbs.
- Standard circular coverage spans to 30’
- 200 degree rotation
- Ideal for swinging around obstacles or under obstructions.

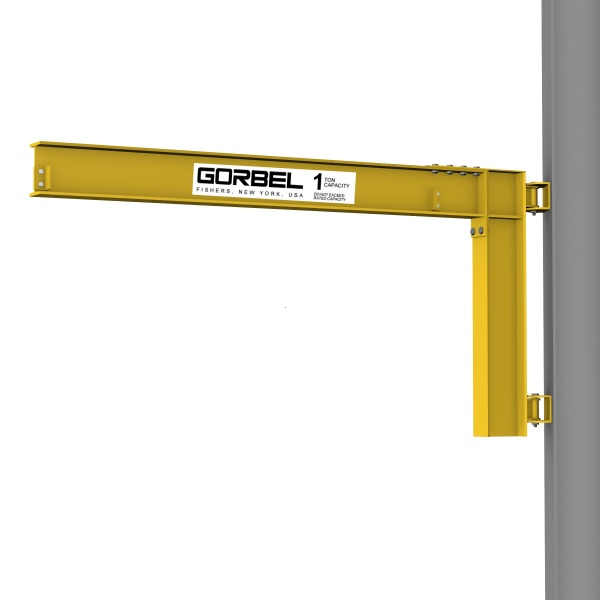

Wall Cantilever Jib Cranes
Wall Cantilever Jib Cranes provide features similar to the Wall Bracket Jib Crane but they have the advantage of providing maximum lift for the hoist, since they can be installed very close to the underside of the lowest ceiling obstruction.- Capacity up to 10,000 lbs.
- Standard circular coverage spans to 20’
- 200 degree rotation
- Requires a structurally adequate wall or column to mount to
- Welded or bolted connection depending on bracket centers

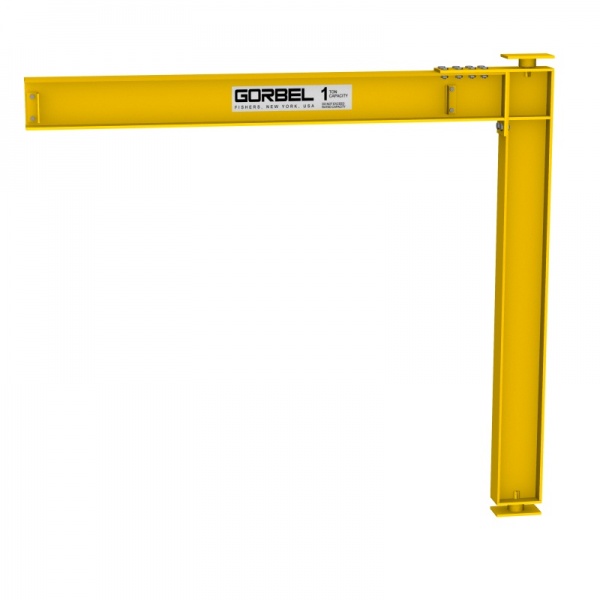

Mast Type Jib Cranes
The Mast Type Jib Crane is floor supported and usually does not require any special foundation. This crane is capable of 360 degree rotation via a top and bottom bearing assembly and with it’sefficient design, makes this jib crane one of the most cost effective of the 360 degree rotation jib styles.
- Capacity up to 10,000 lbs.
- Standard circular coverage spans to 20’
- 360 degree rotation
- Full Cantilever option provides maximum amount of lift where full use of available headroom is desired.
- Drop Cantilever option allows for specific placement of the boom to clear overhead obstructions.
