Workstation Bridge Cranes
Click image to enlarge
Work Station Bridge Cranes and Monorails provide for heavier lifting. Whether choosing the aluminum or steel workstation crane, the system utilizes enclosed track that is high in strength and low in weight, allowing for easy movement and long life.
Stewart Handling can help you determine which of the following Workstation Crane systems will work best in your environment.
The Free Standing Bridge Crane is a floor supported system, therefore, does not put stress on the building’s overhead structure. This free standing system requires a reinforced concrete floor of at least 6 inches. These cranes are also easy to install and easy to relocate in the future.
With the Ceiling Mounted Bridge Crane systems, there are no support structures to obstruct work areas. The supporting steel does not interfere with the handling operation. Ceiling mounted systems require a building with and ample overhead structure to handle the crane
With the addition of extra tracks, the Workstation Bridge Cranes Systems can be readily adapted for more sophisticated applications. You can add the Monorail curve, which is a section of track that is rolled to provide a 90 degree curve.
Stewart Handling can help you determine which of the following Workstation Crane systems will work best in your environment.

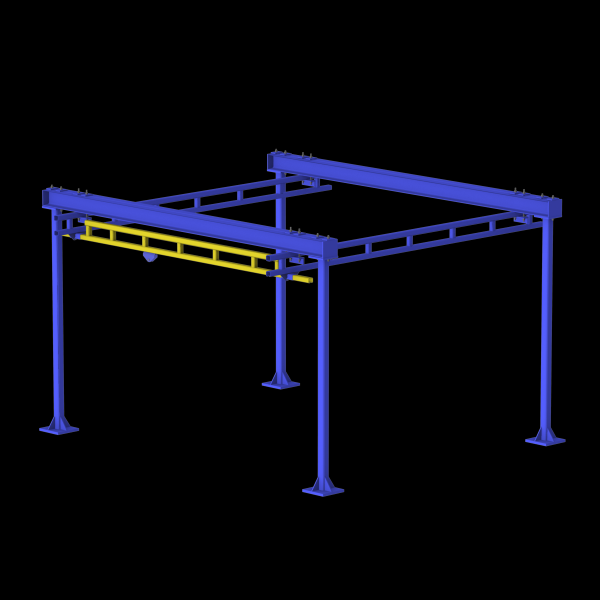

Free Standing Bridge Crane
The Free Standing Bridge Crane is a floor supported system, therefore, does not put stress on the building’s overhead structure. This free standing system requires a reinforced concrete floor of at least 6 inches. These cranes are also easy to install and easy to relocate in the future.- Capacities from 150 to 4000 lbs.
- Rectangular coverage with up to 34’ bridge and 124’ runway standard
- Standard support distance of 20’, 25’ and 30’.
- Easy to move and position loads

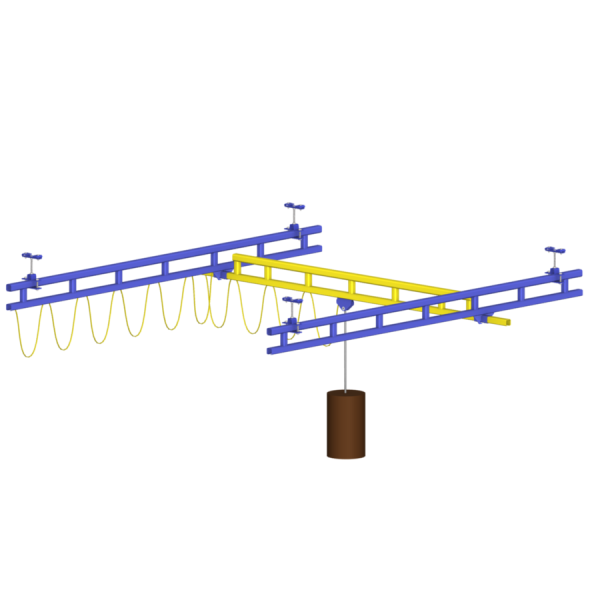

Ceiling Mounted Bridge Crane
With the Ceiling Mounted Bridge Crane systems, there are no support structures to obstruct work areas. The supporting steel does not interfere with the handling operation. Ceiling mounted systems require a building with and ample overhead structure to handle the crane- Capacities from 150 to 4000 lbs.
- Rectangular coverage with up to 34’ bridge and 124’ runway standard
- Standard support distance of 20’, 25’ and 30’.
- Multiple track profiles and spanning capabilities

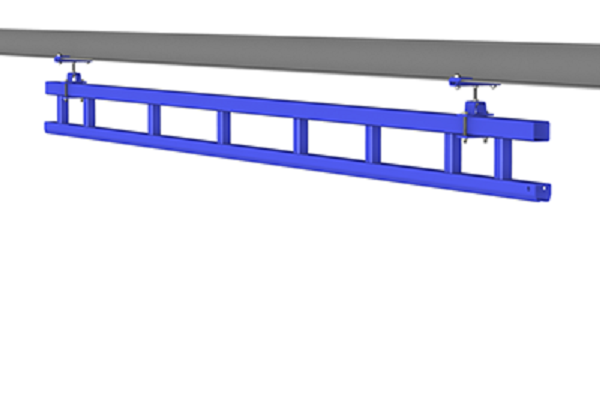

Workstation Bridge Cranes Systems
With the addition of extra tracks, the Workstation Bridge Cranes Systems can be readily adapted for more sophisticated applications. You can add the Monorail curve, which is a section of track that is rolled to provide a 90 degree curve.- Capacities from 150 to 4000 lbs.
- Linear movement
- Modular design for ultimate flexibility
