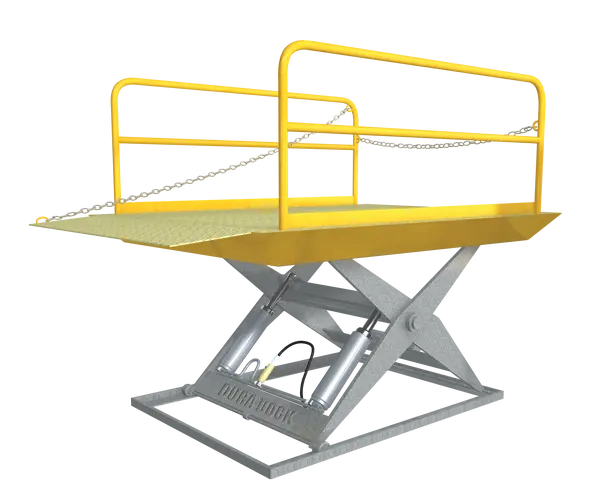

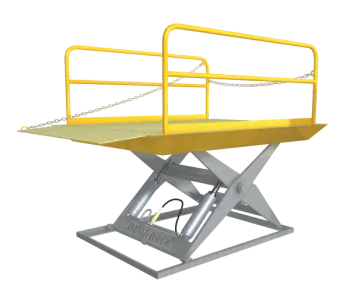

Dura Dock / M Seires Loading Dock Lifts

Name: Dura Dock / M Seires Loading Dock Lifts
Brand: Stewart Handling
SKU: DL5-59M
Availability: InStock
Rating: 5/5 (2 reviews)

(DL5-59M)

Click image to enlarge

Price Each: Call for Price

Quantity:

M-Series Hydraulic Loading Dock Lifts are designed and built for use with non powered transport devices like two wheel dollies, hand carts or hand pallet trucks.

DL5-59M Features

Features DURA-DOCK Construction - Galvanized Base and Legs for Maximum Corrosion Resistance.
Pricing for larger platform sizes:
72" x 108" $9,095; 72" x 120" $9,360; 84" x 90" $9,525; 84" x 108" $9,895; 84" x 120" $10,415; 96" x 96 " $10,325; 96" x 108" $10,690; 96" x 120" $11,210

Dura Dock / M Seires Loading Dock Lifts Specifications

Motor HP: 3.2
Lowered Height: 8"
Raised Height: 67"
Lift Capacity (lbs): 5000
* Standard Platform: 72" x 96"
Voltage/Phase/HZ: 208/230/460-3/60
Max. Platform: 96" x 120"
