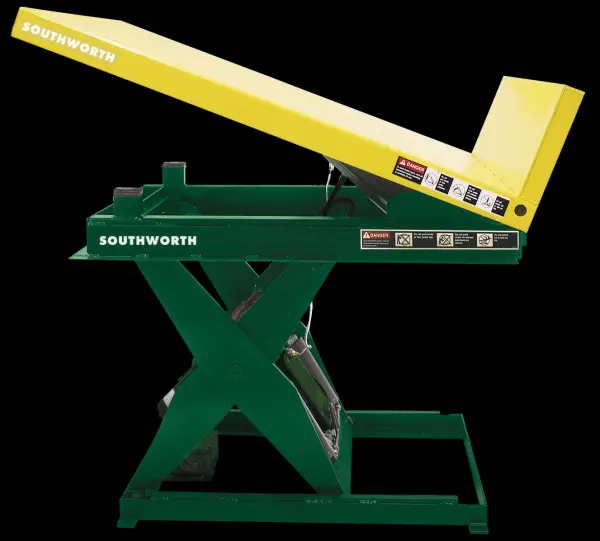

UTB4-45 Hydraulic Lift and Tilt Table

(UTB4-45)
Click image to enlarge
Price Each: Call for Price
Quantity:
  • Any Oversize Top:
    (+$550.00)

E-Z Reach Lift and Tilt tables to precisely position containers with independent control of lift and tilt. Universal Tilter Base (UTB) compensates for the shifting center of gravity as loads are tilted. The open frame top allows the tilting hydraulics to retract within the frame resulting in a lower profile when in the full down position.These tables also feature a shorter, wider stance for maximum stability in a small footprint.
UTB4-45 Hydraulic Lift and Tilt Table Specifications
  • Load Capacity (lbs.): 4000
  • Standard Platform: 42" x 42"
  • Tilt Angle: 45°
  • Voltage Phaze/Hz: 115/1/60
  • Maximum Platform: 66" x 54"
  • Lowered Height: 11"
  • Raised Height: 39"
