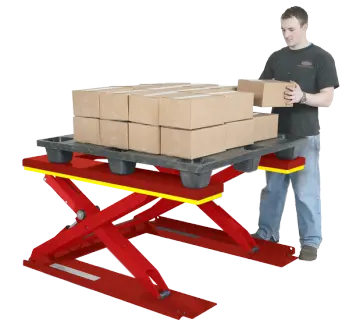

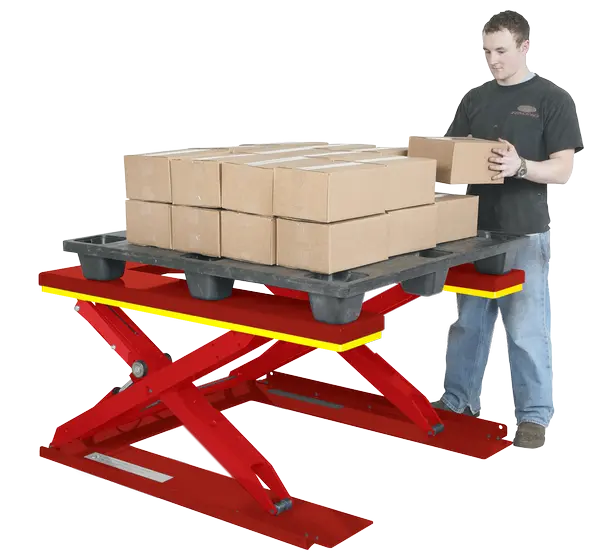

PalletPal Roll-In (ROLL-E) Level Loader

(ROLL-E 2.2-28)
Click image to enlarge
Price Each: Call for Price
Quantity:

The Roll-In Level Loader features a unique low-profile design that allows it to be fed with an ordinary hand pallet truck. The pallet moves over the Roll-In while the pallet truck rolls between the outside platform and the center support beam.
ROLL-E 2.2-28 Features
  • For use with OPEN bottom Pallets
  •  A convenient footswitch allows for hands-free positioning of the load.
  • A full perimeter toe-guard
PalletPal Roll-In (ROLL-E) Level Loader Specifications
  • Raised Height: 31.5"
  • Lowered Height: 3.5"
  • Load Capacity (lbs): 2200
  • Platform Size: 49" x 57"
  • Rise Time: 22 sec
  • Motor HP: 1
  • Voltage Phase/Hz: 115/1/60
